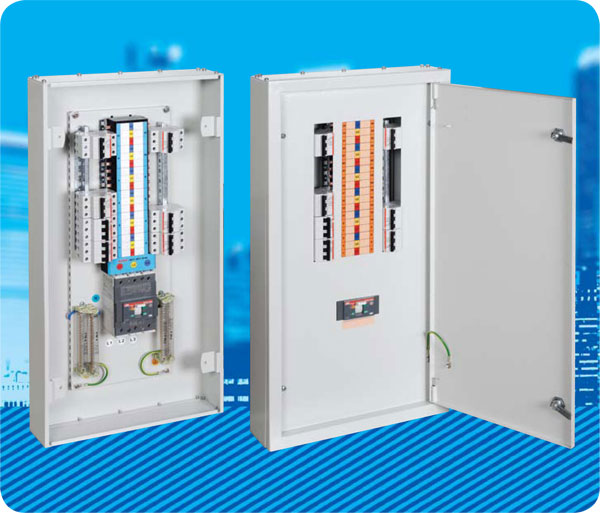

QPB1 Series Panelboard ( Standart IEC 6439-1 ) 208 / 110 Volt |
|
QPB1 Circuit Breaker Panelboards |
|
Max.Panel
Amp.Rating |
Max.
Poles |
Dimensions |
İncomer |
Terminal |
Catalog Number
( Add the end of the Nema type )
( Nema 1- 3R--4--4X ) |
|
Height
mm |
Width
mm |
Depth
mm |
Main
Breakers |
Branch
Circuit Breakers |
|
125 A |
18 |
850 |
550 |
200 |
UL 489
Max.125 A |
UL 1077
1 Pole or 3 Pole
18 mm |
CKM-POWER- 125 QPC1 |
|
30 |
950 |
CKM-POWER- 125 QPC2 |
|
42 |
1100 |
CKM-POWER- 125 QPC3 |
|
250 A |
18 |
850 |
UL 489
Max.250 A |
CKM-POWER- 250 QPC4 |
|
30 |
950 |
CKM-POWER- 250 QPC5 |
|
42 |
1100 |
CKM-POWER- 250 QPC6 |
|
400 A |
30 |
1100 |
600 |
250 |
UL 489
Max.400 A |
CKM-POWER- 400 QPC7 |
|
42 |
1250 |
CKM-POWER- 400 QPC8 |
|
54 |
1400 |
CKM-POWER- 400 QPC9 |
|
600 A |
30 |
1100 |
UL 489
Max.600 A |
CKM-POWER- 600 QPC10 |
|
42 |
1250 |
CKM-POWER- 600 QPC11 |
|
54 |
1400 |
CKM-POWER- 600 QPC12 |
|
|
|
|
|
|
|
|
|
|
XPB1 Series Panelboard ( Standart IEC 6439-1 ) 480 / 277 Volt |
|
XPB1 Circuit Breaker Panelboards |
|
Max.Panel
Amp.Rating |
Max.
Poles |
Dimensions |
İncomer |
Terminal |
Catalog Number
( Add the end of the Nema type )
( Nema 1- 3R--4--4X ) |
|
Height
mm |
Width
mm |
Depth
mm |
Main
Breakers |
Branch
Circuit Breakers |
|
125 A |
18 |
850 |
550 |
200 |
UL 489
Max.125 A |
UL 489
1 Pole or 3 Pole
25 mm
35 mm |
CKM-POWER- 125 XPC1 |
|
30 |
950 |
CKM-POWER- 125 XPC2 |
|
42 |
1100 |
CKM-POWER- 125 XPC3 |
|
250 A |
18 |
850 |
UL 489
Max.250 A |
CKM-POWER- 250 XPC4 |
|
30 |
950 |
CKM-POWER- 250 XPC5 |
|
42 |
1100 |
CKM-POWER- 250 XPC6 |
|
400 A |
30 |
1100 |
600 |
250 |
UL 489
Max.400 A |
CKM-POWER- 400 XPC7 |
|
42 |
1250 |
CKM-POWER- 400 XPC8 |
|
54 |
1400 |
CKM-POWER- 400 XPC9 |
|
600 A |
30 |
1100 |
UL 489
Max.600 A |
CKM-POWER- 600 XPC10 |
|
42 |
1250 |
CKM-POWER- 600 XPC11 |
|
54 |
1400 |
CKM-POWER- 600 XPC12 |
|
|
|
|
|
|
|
|
|
|
QPB1 Series Panelboard ( Standart IEC 6439-1 ) 208 / 110 Volt |
|
QPB1 Main Lugs |
|
Max.Panel
Amp.Rating |
Max.
Poles |
Dimensions |
İncomer |
Terminal |
Catalog Number
( Add the end of the Nema type )
( Nema 1- 3R--4--4X ) |
|
Height
mm |
Width
mm |
Depth
mm |
Main
Breakers |
Branch
Circuit Breakers |
|
125 A |
18 |
850 |
550 |
200 |
UL 489
Max.125 A |
UL 1077
1 Pole or 3 Pole
18 mm |
CKM-POWER- 125 QPM1 |
|
30 |
950 |
CKM-POWER- 125 QPM2 |
|
42 |
1100 |
CKM-POWER- 125 QPM3 |
|
250 A |
18 |
850 |
UL 489
Max.250 A |
CKM-POWER- 250 QPM4 |
|
30 |
950 |
CKM-POWER- 250 QPM5 |
|
42 |
1100 |
CKM-POWER- 250 QPM6 |
|
400 A |
30 |
1100 |
600 |
250 |
UL 489
Max.400 A |
CKM-POWER- 400 QPM7 |
|
42 |
1250 |
CKM-POWER- 400 QPM8 |
|
54 |
1400 |
CKM-POWER- 400 QPM9 |
|
600 A |
30 |
1100 |
UL 489
Max.600 A |
